Energy Destinies Part 5 - Shift to green energy may prove slower and costlier than we believe

Part five of Energy Destinies looks at the challenges involved in energy transition, particularly the heavy demands it places on the mining industry

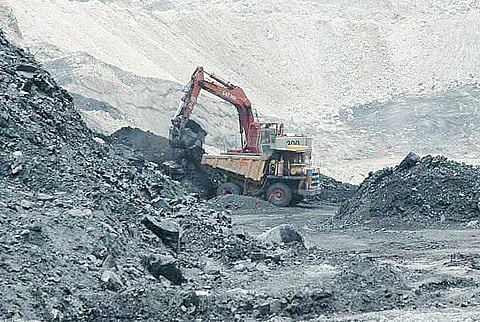

The energy transition requires us to increase our output of minerals several fold
The energy transition requires us to increase our output of minerals several fold

Abundant and cheap power is one of the foundations of modern civilisation and economies. Current changes in energy markets are perhaps the most significant for a long time. It has implications for society in the broadest sense. Energy Destinies is a multi-part series examining the role of energy, demand and supply dynamics, the shift to renewables, the transition, its relationship to emissions and possible pathways. Parts 1, 2, 3 and 4 looked at patterns of demand and supply over time, renewable sources, energy storage and economics of renewables. This part looks at the energy transition.

An energy transition refers to a major structural shift in energy systems. There have been several such historical transitions - bio-fuels, such as wood, to water and wind energies and then to fossil fuels. In its current usage, it is used to describe the attempt to replace fossil-based systems of energy production and consumption with renewable energy sources. This transformation is driven by the need to mitigate emissions to control climatic changes.

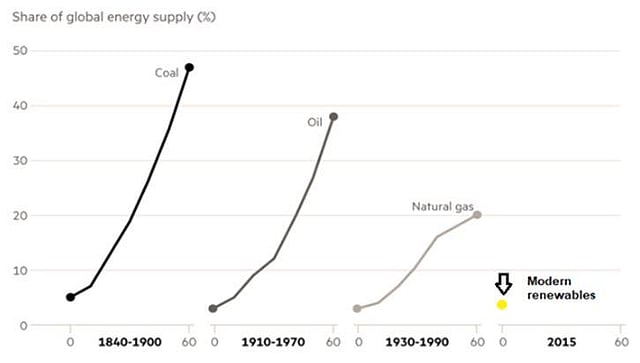

The arc of energy history is depicted below.

In Energy Transitions, Professor Vaclav Smil provides evidence that a new energy source has typically taken between 40–60 years to gain significant market share in previous episodes. The current proposals assume renewable energy will make comparable gains over a much shorter period.

This underestimates the complexity of the current energy transition:

  • The scale is unprecedented, requiring rearranging energy systems for more than 8 billion people and high levels of industrial and household demand.
  • Generally, energy transitions entail shifting to more efficient sources of energy. The current process reverses the trend with a down shift to less efficient sources with lower EROEI, energy density, surface power density and large storage requirements.
  • Unlike previous changes, it is probable that the cost of energy will increase rather than decrease.
  • The urgency for the change due to the need to curb emissions is also without parallel.
  • Previous changes in energy arrangements were undertaken before modern regulatory structures, particularly in advanced countries, which will need to accommodate large-scale changes rapidly.
  • Likely disruption to societal and geo-political arrangements is also potentially greater than in previously transformations.

An Incomplete Transition

The current energy transition, as conceived, is incomplete. It is heavily biased towards electrification focused on using low-emission renewable sources to produce electricity to replace fossil fuels. But electricity, based on most estimates, makes up less than 20 percent of the current energy mix.

The high temperatures, power and energy density needs of heavy Industry (manufacturing, steel, cement, ammonia, plastics), freight transport and aviation favour fossil fuels. These activities will have to be electrified or re-engineered to use alternative fuels which may prove difficult without significant advances in science and production technologies.

The technologies required must overcome daunting barriers. There is scope for using direct reduction techniques for producing steel. However, it may consume 15 times more electricity than the equivalent current coking approach. It requires purer iron ore to melt fully in hydrogen-powered furnaces to skim off contaminants. Substituting fossil fuels in cement production and other industrial processes is challenging.

The technical feasibility of electrification and the use of bio-fuels and other methods are at a developmental stage and are likely to be significantly more expensive than current methods. Decarbonisation of aluminium production consistent with a net-zero or 1.5C pathway alone is estimated to require cumulative investment of approximately $1 trillion, primarily in power supply and smelters.

Electrification, in any case, is insufficient to eliminate carbon emissions from many heavy industries because the chemistry of the processes drive emissions. Around half the carbon dioxide in cement manufacture comes from the conversion of limestone into clinker. In steel, the transformation of iron oxide into pure iron requires stripping oxygen atoms which combine with the carbon to produce carbon dioxide. Modification of the chemistry is required to reduces these emissions.

Problems of battery weight, power capacity and life remain constraints in the electrification of heavy transport. The space needed for hydrogen tanks sufficient to fuel medium-to long-haul aviation limits payloads significantly affect the economics of these forms of transport.

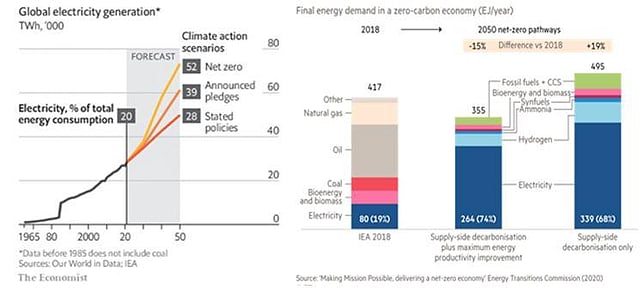

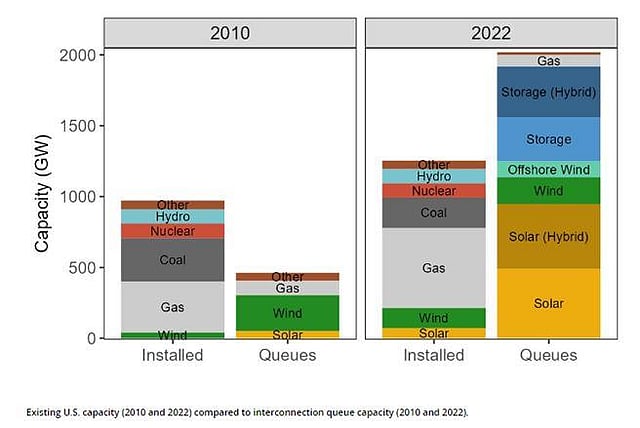

Present transition plans envisage a large expansion of global electricity production by a factor of two to three times, without using fossil fuels.

Complete or even substantial electrification as a pathway to decarbonisation may prove elusive.

Material Intensity

The machinery of the energy transition – solar panels, wind turbines, energy storage, backup plants and re-configured transmission lines and grids - require large amounts of metals, minerals and energy, ironically from fossil fuels.

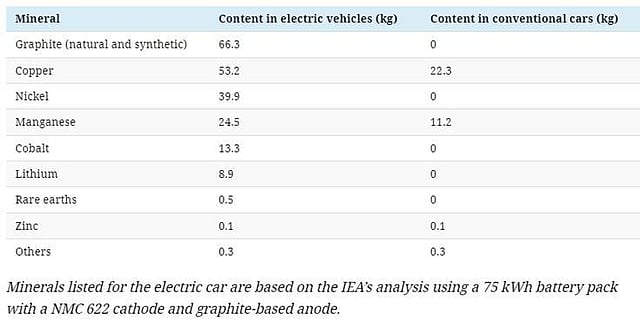

EVs require up to six times more minerals than internal combustion engine-powered conventional cars.

EVs are, on average, 340 kilograms (750 pounds) heavier. The additional weight affects power needs and efficiency as most of the energy in any form of vehicular transport is used to propel its weight.

Wind turbines require steel (66-79 percent of total turbine mass); fiberglass, resin or plastic (11-16 percent); iron or cast iron (5-17 percent); copper (1 percent); and aluminium (0-2 percent). Rare earths are key ingredients in the powerful magnets required. Estimates suggest that about 500 tons of steel and 1,000 tons of concrete are needed per megawatt of wind power.

Each 450 kilogram (1,000 pound) Tesla long range 80-kilowatt-hour battery module is made up of 6,000 individual cells, each containing 10 kilograms (25 pounds) of lithium, 36 kilograms (60 pounds) of nickel; 18 kilograms (44 pounds) of manganese; 14 kilograms (30 pounds) of cobalt; 80 kilograms (200 pounds) of copper; and over 250 kilograms (550 pounds) of aluminium, steel, graphite, plastics, and other materials. When scaled to the type of storage likely to be required at state or national level, the amounts needed are staggering. In aggregate, using battery modules to back up New York's peak summertime electricity needs for 45 minutes would require 3,750 tons of lithium, 9,000 tons of nickel, 6,600 tons of manganese, 4,500 tons of cobalt, 30,000 tons of copper, and 82,500 tons of other materials.

Renewables replace emissions intensity with materials intensity. As the metals and other substances needed require substantial energy to produce, the overall net effect on emissions (lower output from the energy sources adjusted for the higher amount from required materials) is unclear.

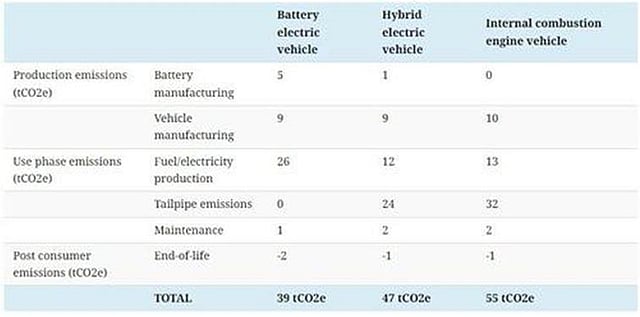

EV life cycle emissions, the total amount of greenhouse gases emitted throughout a product’s existence, including its production, use, and disposal, is revealing. Using a standardised measures (metric tons of CO2 equivalent (tCO2e)) of greenhouse gases, the  comparative emissions of medium-sized electric, hybrid and ICE vehicles can be derived:

EVs have the lowest life cycle emissions but production emissions are approximately 40 percent higher than those of hybrid and conventional vehicles, primarily from extraction and refining of raw materials like lithium, cobalt, and nickel. These comparisons are based on a use phase of 16 years and a distance of 240,000 kilometres (150,000 miles). Where the vehicle has a shorter life or is used less intensively (which is likely to be the case as EVs are better suited to shorter travel distances), the high production emissions mean that the EV’s life cycle emissions approach that of traditional internal combustion powered vehicles.

Claims of lower material intensity of EVs frequently also assume the ability to recycle components, which, in reality, is unproven. Even if they do use less raw materials, many required are rare earths which need toxic production processes. They assume that the EVs are powered exclusively by electricity from renewable energy sources which is not the current position.

This means the shift to renewables may not reduce emissions by the quantum claimed and, perhaps, not at all in some cases.

Transition Critical Materials

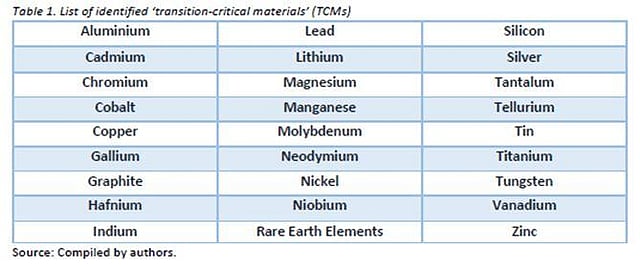

The key energy transition raw materials needed are summarised below:

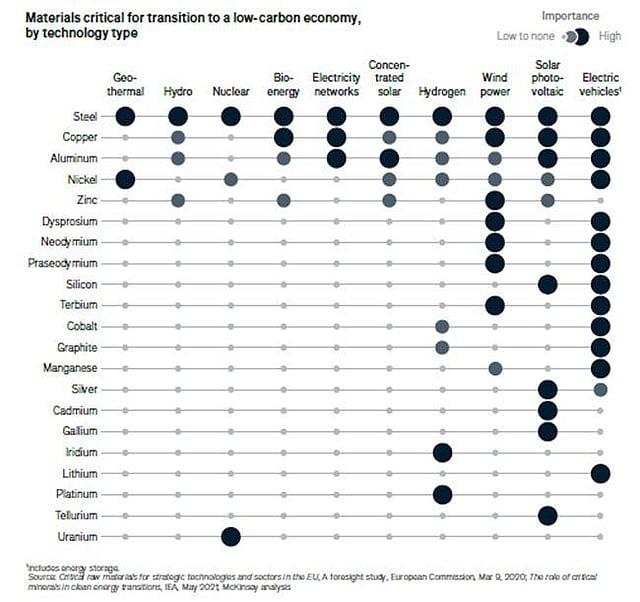

The application of and relative demand for these raw materials are set out below.

In general, analysts focus on two groups of raw materials – first copper, nickel and cobalt, and second lithium and rare earths. In practice, all required raw materials should be considered.

Resource Availability

The availability of the required raw materials at acceptable cost is assumed. Without the requisite supply, the energy transition will, at best, be impeded, and, at worst, not be possible. The key elements in availability include:

  • Sufficiency of the resource.
  • Feasibility of extraction and production.

It is unclear that sufficient amounts of essential raw materials currently exist. The quantity of many metals needed are larger than originally believed, current production levels are insufficient and, perhaps most critically, known mineral reserves are less than the amounts needed. Additional investment can expand production, and exploration may uncover new reserves, but there are difficulties in overcoming the shortfalls, particularly in the short-run.

One estimate of known reserves of many essential raw materials is set out below:

Simon P. Michaux, Associate Research Professor of Geo-metallurgy Unit Minerals Processing and Materials Research, Geological Survey of Finland, compared required production to known reserves concluding that the total metals required for one generation of technology to phase out fossil fuels is insufficient for many substances.

Metal

Required Production (Tonnes)

Known Reserves

(Tonnes)

Reserve Coverage

(Percentage of Requirements)

Copper

4,575,523,674

880,000,000

20 percent

Nickel

940,578,114

95,000,000

10 percent

Lithium

944,150,293

95,000,000

10 percent

Cobalt

218,396,990

7,600,000

3 percent

Graphite

8,973,640,257

320,000,000

4 percent

Vanadium

681,865,986

24,000,000

4 percent

The study found there were sufficient reserves of some materials:

Metal

Required Production (Tonnes)

Known Reserves

(Tonnes)

Reserve Coverage

(Percentage of Requirements)

Zinc

35,704,918

250,000,000

700 percent

Manganese

227,889,504

1,500,000,000

658 percent

Silicon (metallurgical)

49,571,460

Relatively Abundant

Adequate

Silver

145,579

530,000

3,641 percent

Zirconium

2,614,126

70,000,000

2,678 percent

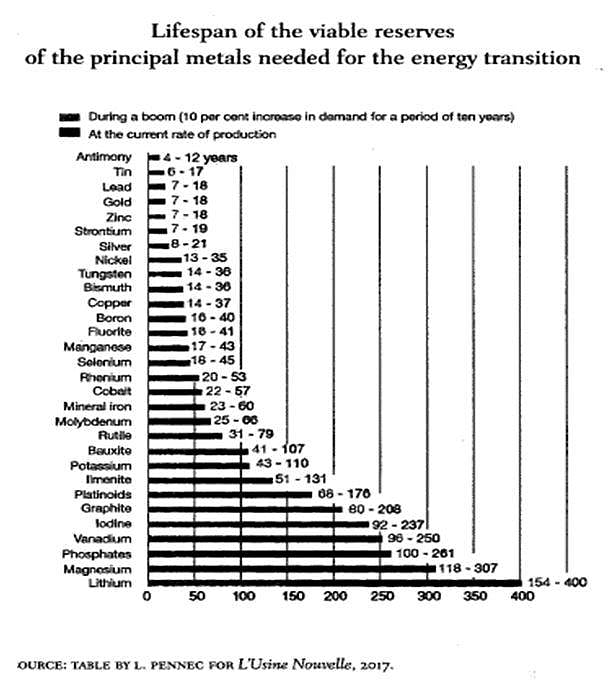

These demand and reserves estimates are inexact and the subject of feverish disputes. However, the magnitude of potential shortfalls is potentially substantial and needs to be carefully considered in energy transition plans.

Extraction And Production

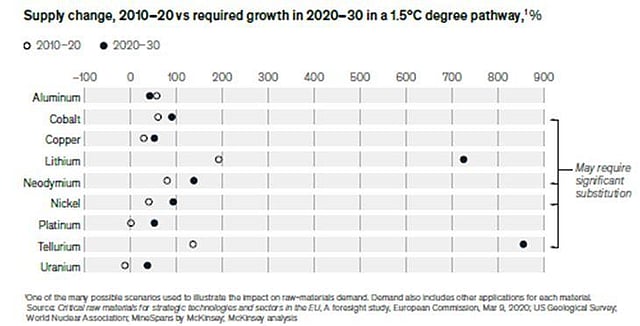

Even if reserves exist, issues of extraction and production arise. The scale is challenging. The magnitude of the expansion in production required for some key raw materials is not to be taken lightly.

The quality of ore deposits that must be exploited is relevant. Grades have declined due to natural depletion at already existing mines which are, understandably, the most easily accessible and low cost. In the case of copper, the average grade of mines has declined from about 2.5 percent 100 years ago to about 0.5 percent today. There are few copper mines today that have copper content greater than 1 percent of the rock. The average grade of Chilean copper, one of largest producers, has fallen by 30 percent over the past 15 years to 0.7 percent. Some other required raw materials naturally occur at lower concentrations. Nickel, lithium, cobalt, and copper make up 0.002 percent to 0.009 percent of the earth's crust. In contrast, more abundant metals like iron and aluminium make up 6 percent and 8 percent respectively

Lower grades and relative scarcity increase exploration, development, extraction and processing costs as well as energy needs and carbon emissions. In the case of copper, lower grades mean that around 16 times more energy must be used to produce the same amount of copper as was the case 100 years ago.

The belief that improvements in exploration and production technology can bridge shortfalls is misleading. Exploration techniques vary between raw materials. The technology for searching out ore bodies, such as copper, is  complicated by the fact that deposits are dispersed often over large areas. Techniques such as seismic testing, which is an efficient means for searching for hydrocarbons, is less effective. Exploratory drilling, a slow process, must be used.

Areas which can be exploited are also different. Mining for most metals is concentrated in a few areas due to the economics. In contrast, oil and gas production can sometimes be undertaken on a smaller scale. Today, a lot of hydrocarbon exploration is in the ocean.

There are ambitious plans for deep sea mining for cobalt, nickel, manganese, and copper. But there are significant difficulties of operating in corrosive salt water, at near-freezing temperatures and under thousands of pounds of pressure per square inch. Overruns of capital and operating costs are frequent. The cost of the Gorgon gas project off the coast of north-west Australia increased from the budget of $11 billion to $54 billion.

Reserve-to-production ratios frequently overstate the amount of the minerals that can be extracted. The time from exploration to production is lengthy. It takes perhaps years to move from exploration to production for oil and gas. In contrast, a greenfield copper mine can take decades to bring onstream although they typically have longer lives some stretching to hundreds of years.

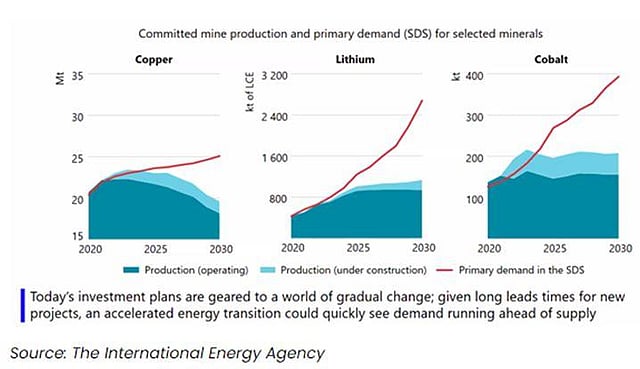

This means that even if, as likely, prices rise sharply, it is unlikely that additional supply of transition required materials will become available quickly as they exhibit relatively limited price elasticity.

Environmental Constraints

Production of the required raw materials is likely to place significant pressure on other resources such as water and land.

Production of many raw materials require large amounts of water. Copper mining is water intensive. This is complicated by the fact that 50 percent of the world’s copper supply comes from Chile, Peru and the African copper belt, all regions with issues of water scarcity. Common techniques for lithium production are water intensive, with areas like the high Andean plateau where large reserves exist being among the driest places on earth. Hydrogen production requires access to large quantities of water.

There are demands on scarce land which may be required for populations and food production. Bio-fuels require both large amounts of water and land. Biomass feedstock for alternative energy effectively mines the topsoil. Globally, as much as 90 percent of the Earth’s topsoil is likely to be at risk by 2050. The average depth of topsoil of the agricultural rich American mid-west has declined from 45 centimetres (18 inches) to 25 centimetres (10 inches) in the past 50 years. With a minimum of 15 centimetres (6 inches) needed to grow crops efficiently, the loss of topsoil is approaching critical levels. Solar facilities in deserts requiring bulldozing of areas destroying the natural eco-system and also release the vast amount of carbon stored underground in desert soils.

There are additional side-effects, such as pollution and environmental damage from mining for the required raw materials.

In effect, significant negative externalities are generally neglected and not incorporated in the cost computations. The energy consumption and emissions of these collateral effects are frequently ignored.

Investment Constraints

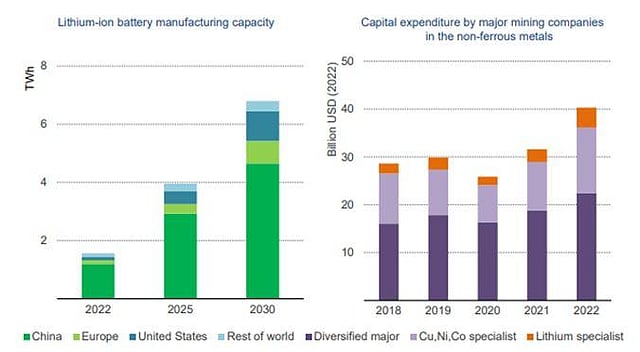

Investment is required to assure sufficiency of supply. Over recent decades, the level of investment in transition critical materials has increased (although the opacity of data from mining companies especially diversified majors makes the areas targeted difficult to accurately identify).

There are several reasons for inadequate investment:

  • Cyclicality of commodities.
  • Low real levels of commodity prices.
  • The large capital requirements of projects.
  • Consolidation and greater risk aversion within large resource groups.

Activist pressure on resource companies to de-carbonise, especially exposed to fossil fuels or high emissions, is increasingly a factor. With most asset managers and investors keen to burnish their ESG (Environment, Social, Governance) performance, there has been a reluctance by public entities to invest in commodities production. A further influence is the seemingly unfashionable nature of resources relative to high growth technology industries, which ironically cannot survive without the materials that must be mined.

Without substantial investments and the associated emissions, shortages of some materials are likely.

Problems with increasing supply have encouraged a focus on secondary supply, primarily scrap and recycled material. Recycling rates for most transition critical materials are currently low. This reflects specific engineering barriers as well as the limited suitable material and utility of recycled material for applications. Historically low prices are another factor creating disincentives for and affecting the financial viability of some recycling. The current scope of meeting demand from recycled supply is limited.

The Green Rush

The issues around sufficiency of investment are, in reality, much deeper. Capital expenditure is inadequate but also not properly targeted.

The energy transition has evolved into a speculative financial ‘green rush’. The enthusiasm for new energy technologies is oblivious to simple facts and basic planning is absent. Even when completed, renewable plants cannot be hooked up to the grid sometimes for several years. In extreme cases, projects are not pursued due to these shortcomings. The Lawrence Berkeley National Laboratory found nearly 2,000 gigawatts of US solar, storage, and wind waiting in transmission grid interconnection queues.

Added by government support, investor euphoria has grown. Investment in renewable related stocks and funds has reached new heights. Valuations of EV stocks, like Tesla, battery producers and hydrogen related firms have risen sharply. Most are priced at high multiples of earnings, sales and asset values. In 2020, green energy Special Purpose Acquisition Vehicles (SPACs) raised $40 billion with a mandate to acquire as-of-yet unidentified clean energy assets.

Funds have frequently flowed to businesses with untested technologies, unrealistic plans or simple flim-flam and quackery. There is an unhealthy lack of focus on the essential underlying basic science in favour of gimmickry. Much of this investment may be written off entirely with the rapid and large losses of capital leaving less money available for real needs. For example, the current interest in the hydrogen economy belies an early investment bust.

The speculative frenzy has diverted funds away from traditional energy firms. The energy industry has under-invested, in renewables and hydrocarbons. Since the peak of 2014, investment in traditional energy (oil and gas) have declined 57 percent driving a  more than 30 percent reduction in global primary energy investments, from $1.3 trillion in 2014 to $0.8 trillion in 2020. In parallel, total investments in energy have fallen around 22 percent from its $2.0 trillion peak in 2014 to $1.5 trillion in 2020 although this is now reversing.

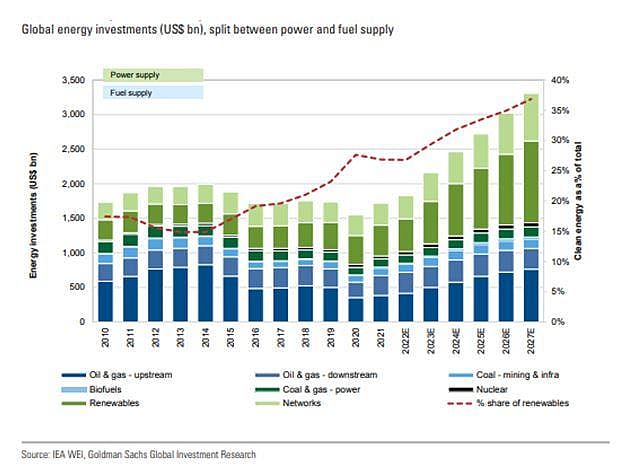

The investment focus on renewables is insufficient to offset lower investments in traditional energy, especially given the smaller scale and higher capital intensity per unit of energy output. Underlying this pattern is conviction of the imminent end of hydro-carbon era. This was reinforced by a flood of analysis which forecast peak global oil demand and fall of around one-third of consumption by 2040. Interestingly, this is inconsistent with projections from the US Department of Energy that American demand will actually slightly increase, not decline by 2050.

Traditional energy firms have seen minimal investment despite proven records of activities and asset bases. Valuations are subdued ignoring record profits due to a spike in oil and gas prices resulting from the Ukraine war.

There is a need for capital expenditure on energy across new and existing sources, which will be required for a long time to come, as well as associated infrastructure and raw materials. The over-reliance on the roll-out of renewables, lack of investment in fossil fuels and constraints around transition critical materials creates the possibility of significant future energy shortfalls.

Political Constraints

The energy transition faces political hurdles.

While most citizens favour a shift away from fossil fuels, the intrusion from actual renewable energy plants and mining to extract essential resources may not be universally supported. Some minerals will inevitably be extracted under poor working conditions in emerging markets, including inadequate workplace safety, using child labour, no environmental safeguards and proceeds being used to fund conflicts. This may prove problematic both under existing laws and ethically. At a minimum, this will slow the supply of necessary transition materials.

Geo-politically, the requirement for certain minerals will create tensions. Existing petrostates stand to lose financially and in terms of influence. At the same time, producers of essential materials will gain in importance. The table below sets out nations producing and possessing reserves of four key transition metals:

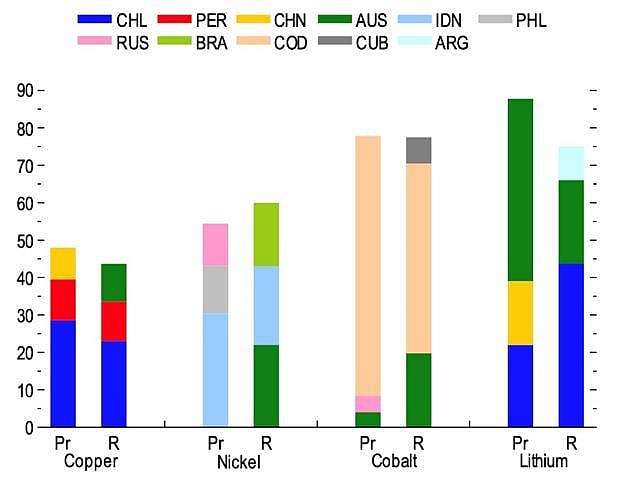

Note: Data lab

els in the figure use International Organization for Standardization (IOS) country codes. Pr = production; r = reserves.

A central issue is China’s dominance in the supply and processing of transition critical minerals. China has a near monopoly on some minerals; for example, 90 percent of processed rare-earth elements. It is amongst the biggest processors of lithium. China supplies more than 60 percent of all natural graphite and most of the synthetised equivalent which is needed for Lithium battery anodes. The major issue is processing. Many required materials occur in low concentrations necessitating processing large amounts of ore and frequently polluting metallurgical methods. Processes are complex, energy intensive, hazardous and expensive.

This situation is not accidental. China’s long-term planning prioritised these industries over decades. Western buyers acquiesced as Chinese processers, supported by state subsidies and minimal environmental standards, drove down costs.

Plans to reduce dependence on China are, at best, likely to be slow or, at worst, near impossible in the relevant time frames. Current strategies for managing the supply chain for these raw materials include friend-shoring to create alternative suppliers, building stockpiles and spare processing capacity. This is unlikely to be easy. Highly conditional subsidies (such as those in the US Inflation Reduction Act), financing, local opposition on environmental grounds and price cutting by existing Chinese suppliers have to date slowed several projects. Increasing recognition of the position is reflected in the noticeable shift in language from ‘decoupling’ to ‘de-risking’ in relation to the relationship with China. Whatever the outcome, the availability and cost of these essential raw materials will constrain the shift to new energy sources.

Control of certain supplies is already an economic weapon. Following on from early skirmishes, in mid-2023, China restricted exports of gallium and germanium compounds (used in semi-conductors and high speed electronics), both among minerals classified by the US government as critical to economic and national security. It was most likely in retaliation for US bans on Chinese purchases of advanced technologies.

The effects of such major global power realignments are unpredictable, especially during a time such as the present when various tensions are evident.

To Get There, I Wouldn’t Start From Here!

The energy transition is vital to reduce greenhouse gas emissions but also to replace the declining supply of fossil fuels. But there are doubts whether such a transformation of the world’s energy systems is feasible.

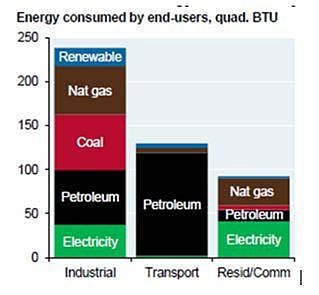

The current narrow focus on electrification is limiting as electricity is only a small part of current energy systems. The requirements of industrial, heavy transportation and aviation applications would require a wide variety of these processes to be first electrified or converted to hydrogen cell technologies. The supply of essential raw materials for the energy transition is also not assured. Emissions and externalities from higher material intensity may not materially change overall greenhouse gas output levels.

Ultimately, the transition has an element of ‘hopium’ built in. It is found on the Micawberian belief that something – scientific or technological – will turn up. Breakthroughs which improve production efficiencies, lower pollutants or allow substitution of transition critical materials with better alternatives are possible but cannot be relied upon.

At best, any energy transition may prove slower and more expensive than currently understood. At worst, the energy transition may prove impossible, at least, to the extent currently envisaged with a substantial residual reliance on dwindling fossil fuel reserves.

In assessing progress, former Russian Prime Minister Viktor Chernomyrdim’s formulation seems apposite: "We have completed all the items: from A to B."

© 2023 Satyajit Das All Rights Reserved

Satyajit Das is a former banker and author of numerous works on derivatives and several general titles: Traders, Guns and Money: Knowns and Unknowns in the Dazzling World of Derivatives (2006 and 2010), Extreme Money: The Masters of the Universe and the Cult of Risk (2011), A Banquet of Consequences RELOADED (2021) and Fortune's Fool: Australia’s Choices (2022). His columns have appeared in the Financial TimesBloomberg, WSJ Marketwatch, The Guardian, the Independent, Nikkei Asia and other publications. This is part of the web-only series of columns on newindianexpress.com.
