Energy Destinies - Part 6: Can carbon sequestration be the world's savior?

The cost of reducing emissions by transforming energy sources is substantial, but so are the repercussions of climate change and global warming.

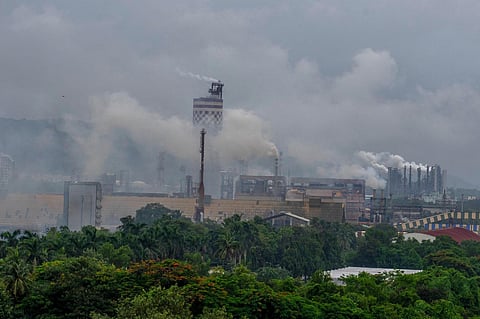

Emissions from a chemical factory fill the skyline on a cloudy day in Mumbai. (Photo | AP)
Emissions from a chemical factory fill the skyline on a cloudy day in Mumbai. (Photo | AP)

Abundant and cheap power is one of the foundations of modern civilisation and economies. Current changes in energy markets are perhaps the most significant for a long time. It has implications for society in the broadest sense. Energy Destinies is a multi-part series examining the role of energy, demand and supply dynamics, the shift to renewables, the transition, its relationship to emissions and possible pathways. Parts 1, 2, 3, 4 and 5 looked at patterns of demand and supply over time, renewable sources, energy storage, economics of renewables and the energy transition. This part looks at the interaction between energy policy and emissions.

Since the 1990s, the reduction of greenhouse emissions has been central to energy policy. At the 2015 Paris Climate Summit, participating nations agreed to reach carbon neutrality by the middle of the 21st century to limit global warming to below 2C, preferably 1.5C compared to pre-industrial levels. This requires a rapid transition from fossil fuels to renewables.

The 1.5C target is a politically-driven compromise as even at that level the damage to the environment and bio-diversity is significant.

Emissions targets

Despite serial summits, the reality is that the earth is likely to warm by 1.5C within the next decade with overall temperature exceeding the 2C maximum by the end of the century. Current commitments and policies fall well short of keeping temperatures below the specified levels. The dramatic necessary reduction in global greenhouse gas emissions is most likely unachievable.

There are multiple reasons for the failure of current policies.

North-South boundaries

Given the global scope of the issues, emission limits must be adopted by all countries, although compliance by major emitters would allow progress. Even if agreements are reached there is no effective mechanism for enforcement. Accounting is weak, verification is lacking and legal loopholes abound. Actual actions do not match statements. Many countries rely on complex credits and offsets of dubious efficiency (effectively transferring the problem to other countries) to meet their commitments.

There are differences between advanced and emerging economies (frequently simplified as the North-South divide). In the former, there is more political pressure on governments for action on climate change. In the latter, the agreements are viewed as stunting development. Without an increase in their energy consumption and emissions, in some cases to a fraction of that enjoyed by the citizenry of richer nations, the ability of poorer nations to improve incomes and living standards is constrained.

The different levels of energy consumption - the average African consumes currently less energy per capita annually than a refrigerator in advanced economies -is one point of contention. A further point of difference is the legacy of energy use by advanced nations since the industrial revolution which had resulted in the build-up of carbon dioxide in the atmosphere.

In the last few decades, advanced countries have compounded the problem by shifting high-emission industries to developing nations to take advantage of lower costs, laxer environmental and work safety standards, and reduce their emissions. EVs should really be re-branded EEVs – Emissions Elsewhere Vehicles.

This effectively means that emerging nations will need to cut emissions far more aggressively than their counterparts in developed countries. For example, South Korea, a mid-ranking industrial power, will need to cut reduce emissions by over 5 percent per annum by 2030, while the European Union must cut by around 2 percent and the US and UK by 2.8 percent.

The divisions mean that emerging countries, understandably, will pay lip service but are unlikely to commit to emission reductions, at least without significant financial compensation. They are likely to increase their energy use, emissions and be less likely to accede to actions that constrain economic development.

A costly affair

The cost of reducing emissions by transforming energy sources is large but so is the expense of climate change and global warming. Unfortunately, there is little agreement on the specifics with substantial differences in estimates.

Deloitte, a consultancy firm, projects that climate change could cost the global economy $178 trillion over the next 50 years. Swiss Re, a re-insurer, projects that climate change could reduce global economic output by 11-14 percent or as much as $23 trillion annually by 2050 with some countries suffering losses of up to one-third of their wealth. Morgan Stanley, an investment bank, estimated $50 trillion needs to be spent on five areas of technology by 2050 to meet the Paris Agreement's goal of limiting global warming including $14 trillion on renewable power generation and energy storage, $11 trillion on EVs, $2.5 trillion on carbon capture and storage, $5.4 trillion on hydrogen production and storage and $2.7 trillion on bio-fuels. The World Bank puts the cost at 1 percent of global GDP each year (approximately $1 trillion) while the UN estimates it at $1.8 trillion. The International Energy Agency argues that the cost will increase with inaction over time reaching over $20 trillion by 2030. The World Bank estimated that climate inaction could reduce global GDP by at least 5 percent annually while the price of the necessary action is set to 1 percent of global GDP annually.

While the faux precision is reassuring, the underlying assumptions vary. The estimates should be treated with caution, especially given humanity’s poor forecasting record. Many estimates are the work of self-interested parties who have financial motivations, ranging from consulting contracts, donations, funding as well as investment in beneficiaries of specific actions.

Irrespective of the pretense at accuracy, the costs are substantial and must be paid for ultimately by individuals globally. The problem is that there is little agreement as to who should pay for it and also how it should be funded.

Poor public finances, especially following the pandemic which saw a global fiscal response of over $20 trillion, mean that many countries may not be able to support the cost of the energy transition alongside normal infrastructure and spending needs. The problem is acute in many low-income and less-developed countries with high debt levels.

One persistent sticking point has been the transfers from developed nations to emerging countries. Without transfers or subsidised financing from advanced economies, the Bridgetown Agenda for the Reform of the Global Financial Architecture highlights that developing countries are unlikely to be able to finance the energy transition to reduce emissions because of their higher macroeconomic risks.

Under the existing public climate finance plan, developed nations agreed to pay $100 billion each year to developing countries for critical infrastructure for adaptation, resilience and the new renewable energy-based economy. Contributions have persistently failed to reach this level which, in any case, is below the true adaptation costs for developing countries. Estimates of the amount poorer countries will need to spend a year in order to reduce emissions and protect their economies vary wildly, ranging between $140 billion and $300 billion per year by 2030, $280 billion to $500 billion annually by 2050. One forecast puts it at $2.8 trillion. Different assumptions, inclusions and exclusions underlie the variation.

Increasingly, policymakers are hoping that private finance can mobilise the required capital. Given that issues are largely around public goods, it is not clear what return incentive or government subsidies would be needed.

Effects on living standards are a significant barrier to adopting appropriate policies. It is probable that climate change and the actions to ameliorate its effects will reduce living standards. The losses will be financial (lower real incomes and wealth) as well as lifestyle expectations (denial of access to reliable and almost unlimited energy sources). The quantum and the portions of society and countries most affected is uncertain. Ultimately, no politician relishes seeking re-election on the basis of actions that will leave constituents worse off.

Allied to the issue of living standards is the nature of climate change which is inherently slow-acting and long-term in nature. Evolution appears to have conditioned humans to react defensively to serious existential threats. Despite claims of rationality, we innately prefer to shut out such anxieties as a form of self-preservation. Comfort is found in denial or accepting simplistic schemes that frequently do not solve unwelcome situations. The underlying logic is one that Helen Keller articulated: "Some people do not like to think. If one thinks, one must reach conclusions; and conclusions are not always pleasant."

The response is compounded by declining trust in authorities and institutions. It traps people in the prisoner’s dilemma. Lacking confidence in societal processes each person believes that their interests can only be safeguarded by caring about individual, not collective fates.

Meaningful attempts at actions that are effective in reducing emissions are difficult and unlikely.

Negative emissions

Reduction of greenhouse emissions to anywhere near target levels relies on carbon removal. Negative emissions are integral to the Intergovernmental Panel on Climate Change scenarios and the climate agreements based around them, especially for countries like China and India.

The energy transition will require carbon capture and sequestration (CCS), removing emissions and storing or utilising the carbon dioxide, for several reasons:

  • In the short term, it can reduce human greenhouse emissions while renewable energy sources increase their share of the energy mix.
  • It can deal with ongoing emissions from hard to de-carbonise sectors, such steel, cement, heavy transportation and aviation, at least until, if ever, affordable, scalable carbon-free technologies become available.
  • It could eliminate greenhouse gases other than carbon dioxide such as methane and nitrous oxide from sources like cattle, animal waste, and fertilizer use, which are difficult to deal with.
  • In the long term, it could reduce the amount of carbon already in the atmosphere to gradually reduce temperatures.

Carbon capture

CCS entails the capture and separation of carbon dioxide from air or industrial and energy-related sources after which it is conditioned, compressed and transported for either reuse or long-term isolation from the atmosphere, through storage underground in geological formations or long-term trapping in material products.

The associated terminology varies: direct air capture (DAC), bioenergy with carbon capture and storage (BECCS), carbon sequestration and carbon dioxide removal (also called negative emissions). CCUS (Carbon Capture, Utilization, and Storage) is an all-encompassing term covering the use of the captured carbon dioxide for other applications, such as enhanced oil recovery (EOR), making liquid fuel, or consumer goods, such as plastics.

There are two general approaches: biological and techno-mechanical. Earth's soils and plants already store more than 3 trillion tons of carbon. Biological CCS entails preservation of existing forests, reforestation, soil-building agricultural practices, and encouraging kelp growth in oceans to expand natural carbon storage. This would leverage normal photosynthesis to remove carbon dioxide from the atmosphere.In contrast, techno-mechanical methods use machinery and chemicals to capture carbon dioxide for reuse or storage. There are issues around the use of CCS, some unique to the specific technology used.

Biological CCS, especially preserving existing forests, reforesting logged areas or afforesting previously treeless ones, is by a significant margin less costly and effective in removing carbon as well as having side benefits such as increasing biodiversity. But biological CCS requires large areas of land estimated at anywhere between 3.2 million square kilometres (roughly the size of India) and 9.7 million square kilometres (roughly the size of Canada), equivalent to 23-68 percent of the world's arable land. It would compete with alternative land use claims for agriculture and human habitation. Without significant improvements in crop yields and reductions in population, this might make biological CCS impractical.

The time needed for trees to reach maturity and maximum carbon absorption potential means it is not immediately effective. Biological CCS is also impermanent. Carbon stored in soils and plants can subsequently be released back into the atmosphere, for example, through logging, wildfires, death of trees through disease or changes in farming practices.

Techno-mechanical CCS requires capturing carbon dioxide either directly from an industrial process or out of the air and isolating it using absorption, adsorption, chemical looping, membrane gas separation or gas hydration. The separated carbon dioxide is then reused, usually in beverages, or stored as gas in underground reservoirs such as mines or depleted oil and gas fields. Alternative storage requires solidifying the carbon dioxide into pellets or rocks for use as building material or for deep underground burial. Mechanical carbon removal technology is currently immature, inefficient, expensive and risky. Some methods are yet to be scaled up to commercial scale.

Techno-mechanical methods are currently most often used at industrial plants with high emissions such as power generators that use fossil fuels, cement production, steelmaking, natural gas processing, synthetic fuel plants and fossil fuel-based hydrogen production plants. It captures on average between 50 percent and 68 percent of carbon released although some projects have reached higher levels of efficiency.

Direct air extraction is less efficient because of the lower concentration of carbon dioxide in air compared to industrial sources. It also complicates the engineering and makes the process more expensive.

Transportation and storage present challenges because large-scale carbon dioxide release presents asphyxiation risks. Transport via often long pipelines to storage sites must be secure with a low risk of rupture or leakage.

Geo-sequestration – injecting carbon dioxide into underground geological formations – requires appropriately located structures that are safe for long-term storage. Preventing carbon dioxide escape is usually via physical (highly impermeable caprock) and geochemical trapping mechanisms. This rules out tectonically unstable regions. The process of testing potential storage sites is complex. Gaining public support is also challenging. It is unclear whether sufficient storage can be secured.

Techno-mechanical CCS is energy-intensive, known as the ‘energy overhead’ or ‘energy penalty’. When used in power generation, CCS can consume 10-40 percent of the energy produced about 60 percent of the loss coming from the capture process, 30 percent from compression of carbon dioxide and 10 percent from pumps and fans. The exact penalty depends on the power generation technology used. CCS potentially increases the fuel requirement of a plant by about 15 percent for a gas plant. The costs of energy from a power plant with CCS can be 30–60 percent higher. The DAC process, which requires fans to blow air across a filter to capture the carbon, is also energy intensive. Unless all the extra energy required is generated from clean renewable sources, unlikely in the near term, the net effect on emissions is uncertain.

Techno-mechanical CCS requires other resources. Carbon mineralization, trapping and permanently storing carbon dioxide in reactive rocks such as basalt, requires large amounts of water, approximately 25 tons of water for every ton of carbon dioxide. Using less water and higher concentrations increases the risk of carbon dioxide being released under certain temperatures and pressure conditions. Enhanced weathering, a CCS technology in which ocean alkalinity is increased through depositing rock particles into the ocean, requires an average of 2-4 tons of silicate minerals (olivine) per tonne removed. The minerals must be ground into fine dust which is energy-intensive.

A major limiting factor is the scale required. The International Energy Agency projects that by 2050 CCS' capacity to capture and store it underground needs to reach 7,000 million tonnes per year.

The Intergovernmental Panel On Climate Change admitted that the capture rates needed consistent with 2C warming target required a “remarkable” rate of increase. As of 2022, there were around 35 commercial CCS facilities allied to industrial processes, fuel transformation and power generation, with a total annual capture capacity of 45 million tons of carbon dioxide and around 300 projects under development.

The required CCS expansion also ignores some important considerations:

  • The carbon dioxide capture necessary grows rapidly if emissions are not reduced.
  • The energy overhead of CCS facilities, that is the power used to capture carbon, compress it and inject it underground, is significant.

Vaclav Smil highlighted the challenge: "... [in] order to sequester just a fifth of current carbon dioxide emissions we would have to create an entirely new worldwide absorption-gathering-compression-transportation-storage industry whose annual throughput would have to be about 70 percent larger than the annual volume now handled by the global crude oil industry, whose immense infrastructure of wells, pipelines, compressor stations and storage took generations to build.” Geologist Andy Skruse identified the practical difficulty directly: “We’d have to finish one new facility every working day for the next 70 years.”

The problems are magnified by the difficulties experienced in CCS projects. Based on several project attributes such as cost, technological readiness, credibility of revenues, policy incentives, regulatory complexity and public opposition, more than 80 percent of CCS projects have failed.

The high cost of CCS both in terms of plant and operating costs remains a barrier to adoption. A large-scale CCS plant, allied to a power generator or heavy industrial plant, costs billions of dollars. DAC plants are also expensive with one designed to capture 1 megaton of carbon dioxide a year costing upwards of $2 billion. To date, CCS trials for coal-fired plants have generally proved economically unviable in most countries due to the capital cost and energy penalty.

The cost of removing carbon dioxide is currently assumed to be around $600 per ton, with a wide dispersion of $100-1,000. Without substantial reductions to the lower end of that range, techno-mechanical CCS is likely to remain uneconomic. The assumption is that higher volumes, learning experience and improvements in technology including scientific breakthroughs will lower costs. However, the extent and timing are unknowable.

The value of the captured carbon is currently uncertain, beyond the externalities of reducing emissions. CCS activity focused on sequestration without any compensating use makes the economics unattractive. This has focused attention on the use of carbon dioxide. The most prevalent current application is in oil and gas production where gas is injected to maintain reservoir pressure. The economics are viable while the fields are operative and are affected by revenue from enhanced oil recovery which is affected by volatile oil prices. Applications such as beverages or building materials are either insufficient, expensive or technologically young.

One way to create an economic incentive is through carbon taxes set at a level that would make CCS viable. The tax would have to be set at a level above the current price of $40-80 per ton of carbon dioxide. The required carbon price would have to be at least $120 combined with cross-border carbon tariffs, such as that proposed by the European Union, to make CCS viable. This assumes large cost reductions through efficiencies and economies of scale and scope. The alternative is subsidies for CCS which are now available in a number of countries. The carbon tax or subsidies would eventually have to be paid by energy consumers.

The major attraction of CCS for policymakers and the public is that it superficially reduces the need for changes in energy consumption and lifestyles. It also has the advantage that it can be retrofitted to existing industrial plants. However, it is uncertain whether it is feasible or can be done in a cost-effective and energy-efficient manner. Opponents also argue that CCS could indirectly legitimise the continued use of fossil fuels and undermines commitments to emission reduction.

The former UK chief scientist David King worryingly argued that CCS is essential to keep temperature rises below 1.5-2C and is  "the only hope for mankind".

Hot and hotter!

Based on the current state of science, technology, policy development and implementation, the probability of meeting emissions targets is doubtful. This means that global temperature rises will, in all probability, exceed the recommended levels, most likely substantially and earlier than projected. The consequent changes in planetary geo-physics and meteorology will be substantial.

It seems that the world continues to face the choice once articulated by Woody Allen: "More than any other time in history, mankind faces a crossroads. One path leads to despair and utter hopelessness. The other, to total extinction. Let us pray we have the wisdom to choose correctly."

© 2023 Satyajit Das All Rights Reserved

Satyajit Das is a former banker and author of numerous works on derivatives and several general titles: Traders, Guns and Money: Knowns and Unknowns in the Dazzling World of Derivatives (2006 and 2010), Extreme Money: The Masters of the Universe and the Cult of Risk (2011), A Banquet of Consequences RELOADED (2021) and Fortune's Fool: Australia’s Choices (2022). His columns have appeared in the Financial TimesBloomberg,WSJ Marketwatch, The Guardian, the Independent,Nikkei Asia and other publications. This is part of the web-only series of columns on
